UL 752 Level 1 Specifications
Most commonly used as a protection barrier against hand guns of medium power, such as the 9mm, Super 38 Automatic, and the like, with muzzle energy of 380-460 foot-pounds (515-624J).
1/4”
2.6 lbs per square foot
1175
358
124
8
3
4.3
9mm full metal copper jacket with lead core – 124 grain, 8 grams, minimum 1175 feet per second.
- 3’ x 8’
- 4’ x 8’
- 5’ x 8’
- 3’ x 9’
- 4’ x 9’
- 5’ x 9’
- 3’ x 10’
- 4’ x 10’
- 5’ x 10’
Custom sizes available
- UL752 Standard for Bullet Resisting Equipment – Level 1 Paragraph 4.3
- One Hour Fire Rating Per ASTM E119-98
Additional Information
Other Products Available
ArmorCore® Bullet Resistant Fiberglass Panels are manufactured at all 8 Levels of UL752 Standards and NIJ0108.01 specifications.
UL 752 LEVEL 1 BENEFITS
- Product needs to bend – Level 1 offers flexibility
- Two Layers of Level 1 is equivalent to Level 3
- Non-Spalling
- Non-Ricocheting – captures the bullet
- Non-Conductive
- Easy to install
- Effective delay against forced entry
- Low wicking – preventing buildup of mold
- Nontoxic materials – no formaldehyde
*Does not meet standard under CA Prop 65.
Technical Specifications

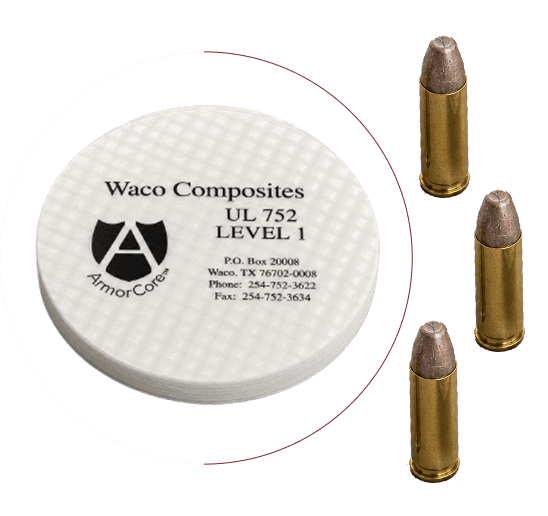

ArmorCore Level 1 panels are rigorously tested to withstand bullets from 9mm full metal copper jacket rounds with lead cores. These rounds travel at a minimum velocity of 1,175 feet per second and generate between 380 and 460 foot-pounds of muzzle energy. At a thickness of 1/4 inch and a weight of 2.8 pounds per square foot, this makes them light but tough, ensuring reliable defense against ballistic threats.
Our engineers have designed these panels utilizing multiple layers of woven roving ballistic-grade fiberglass fabric, impregnated with a thermoset polyester resin. This specific composite formulation enables the panels to exhibit controlled internal delamination, effectively capturing and containing projectiles upon impact. This design mitigates the risk of spalling and ricochet, common hazards in many ballistic-resistant materials, thereby enhancing safety and maintaining structural integrity under high-velocity ballistic threats.
Use Bullet Resistant Glass Panels to Boost Security
ArmorCore Level 1 panels offer versatile, high-level bullet-resistant protection suitable for a range of environments. Designed for discreet installation, these panels provide security without compromising the appearance or structural integrity of the building. Their adaptability makes them ideal for various applications where covert protection is a priority.
Applications include:
- Banks
- Government offices
- Schools
- Residential properties
- Walls
- Doors
- Vestibules and Judges Benches
Versatile Bullet Resistant Panel Applications | Armorcore
Tip: If you need more protection, you can layer two ArmorCore Level 1 panels. This gives you the same protection as a Level 3 panel, which can stop bullets from higher powered handguns. This also offers the benefit of being able to install the panel on a radius.

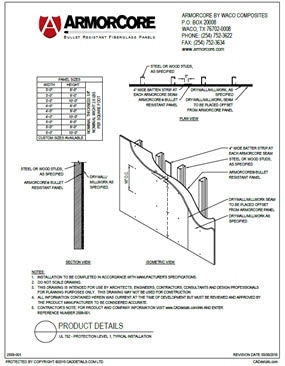

Easy Installation and Maintenance
ArmorCore Level 1 panels are easy to install in both new and existing buildings. Unlike steel barriers, they don’t conduct electricity or rust, making them simpler to work with. You can easily cut them to size using a diamond-grit saw blade and regular tools, which helps reduce installation time and costs.
These panels also feature moisture-wicking properties that minimize water absorption, preventing mold growth and ensuring long-lasting durability. Manufactured from non-toxic materials, ArmorCore panels contribute to a safer and more sustainable building environment.
Why Choose ArmorCore?
ArmorCore Level 1 bullet-resistant fiberglass panels exceed UL 752 Level 1 standards, effectively stopping and capturing ballistic threats.These panels offer dependable protection for high-security environments. ArmorCore bullet-resistant fiberglass ensures enhanced safety for your facility against potential threats.
Level Up Your Protection With ArmorCore
If you’re seeking top-notch defense from bullets, shrapnel, severe weather and other projectiles without sacrificing quality, pick ArmorCore Level 1 bullet-resistant fiberglass panels. We pride ourselves on our reputation as an established manufacturer and trusted supplier to the police, military, banks, government offices, schools, and even homes.
Request a quote, contact us today, and discover how we can tailor our panels to your specific security needs.
