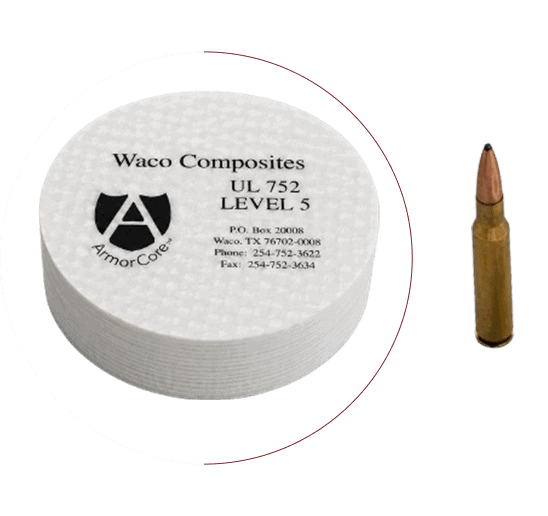

UL 752 Level 5 Specifications

Application

Most commonly used for as a protection barrier against military ball full metal copper jacket ammunition fired from a hunting rifle, such as the 308 Winchester or a military rifle with muzzle energy of 2519-3048 foot-pounds (3416-4133J)

Nominal Thickness

1 7/16"

Nominal Weight

14.8 lbs per square foot

Minimum fps

2750

Velocity m/s

838

Grain

150

(g)

9.7

No. of Shots

1

UL 752 Paragraph

4.7

Ammunition Tested

7.62MM rifle lead core full copper jacket, military ball - 150 grain, 9.7 grams, minimum 2750 feet per second

Panel Sizes
  • 3' x 8'
  • 3' x 9'
  • 3' x 10'
  • 4' x 8'
  • 4' x 9'
  • 4' x 10'
  • 5' x 8'
  • 5' x 9'
  • 5' x 10'
Level 5 Bullet Resistant Performance Level
  • UL752 Standard for Bullet Resisting Equipment – Level 5 Paragraph 4.7
  • One Hour Fire Rating Per ASTM E119-98
  • Class IV Forced Entry Prevention Rating per ASTM F1233-98
  • Sound Insulation Rating Per ASTM E413-87

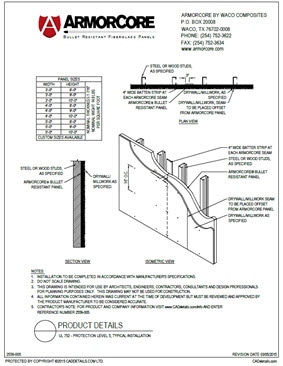

Technical Documentation
Request Project Details

Additional Information

Other Products Available

ArmorCore® Bullet Resistant Fiberglass Panels are manufactured at all 8 Levels of UL752 Standards and NIJ0108.01 specifications.

UL 752 LEVEL 5 BENEFITS

  • Non-Spalling
  • Non-Conductive
  • Non-Ricocheting - captures the bullet
  • Provides protection against 7.62 military rounds
  • Easy to install
  • Effective delay against forced entry
  • Low wicking – preventing buildup of mold
  • Nontoxic materials – no formaldehyde

*Does not meet standard under CA Prop 65.
