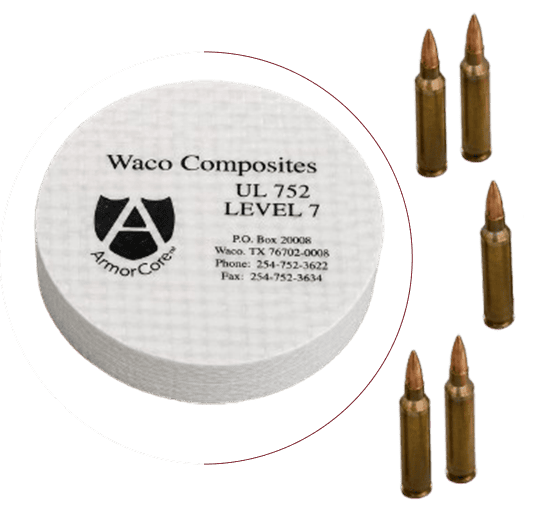

UL 752 Level 7 Specifications

Application

Most commonly used as a protection barrier against multiple shots from a military assault rifle, such as the M-16, and the like, with muzzle energy of 1158-1402 foot-pounds (1570-1901J).

Nominal Thickness

1 – 1/8”

Nominal Weight

11.7 lbs per square foot

Minimum fps

3080

Velocity m/s

939

Grain

55

(g)

3.56

No. of Shots

5

UL 752 Paragraph

4.9

Ammunition Tested

55 grain (3.56 g) 5.56 mm rifle full metal copper jacket with lead core, minimum velocity of 3080 (939 mps)

Panel Sizes
  • 3' x 8'
  • 3' x 9'
  • 3' x 10'
  • 4' x 8'
  • 4' x 9'
  • 4' x 10'
  • 5' x 8'
  • 5' x 9'
  • 5' x 10'
Level 7 Bullet Resistant Performance Level
  • UL752 Standard for Bullet Resisting Equipment – Level 7 Paragraph 4.9
  • One Hour Fire Rating Per ASTM E119-98
  • Class IV Forced Entry Protection Rating per ASTM F1233-98
  • Sound Insulation Rating per ASTM E413-87

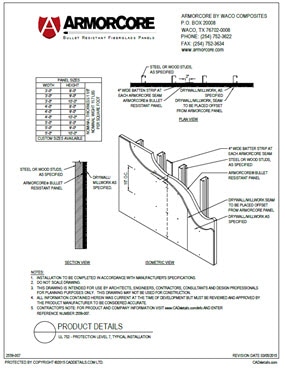

Technical Documentation
Request Project Details

Additional Information

Other Products Available

ArmorCore® Bullet Resistant Fiberglass Panels are manufactured at all 8 Levels of UL752 Standards and NIJ0108.01 specifications.

UL 752 LEVEL 7 BENEFITS

  • Non-Spalling
  • Non-Conductive
  • Non-Ricocheting - captures the bullet
  • First Level offering rifle protection
  • Provides protection against AR-15 semi-automatic weapon
  • Easy to install
  • Effective delay against forced entry
  • Low wicking – preventing buildup of mold
  • Nontoxic materials – no formaldehyde

*Does not meet standard under CA Prop 65.
