UL 752 Level 2 Specifications

Application

Most commonly used as a protection barrier against hand guns of high power, such as the .357 Magnum, and the like, with muzzle energy of 548-663 foot-pounds (743-899J).

Nominal Thickness

5/16"

Nominal Weight

3.6 lbs per square foot

Minimum fps

1250

Velocity m/s

381

Grain

158

(g)

10.2

No. of Shots

3

UL 752 Paragraph

4.4

Ammunition Tested

158 grain (10.2g) .357 Magnum jacketed soft point, minimum velocity of 1250 fps (381 mps)

Panel Sizes
  • 3’ x 8’
  • 4’ x 8’
  • 5’ x 8’
  • 3’ x 9’
  • 4’ x 9’
  • 5’ x 9’
  • 3’ x 10’
  • 4’ x 10’
  • 5’ x 10’

Custom sizes available

Level 2 Bullet Resistant Performance Level
  • UL752 Standard for Bullet Resisting Equipment – Level 2 Paragraph 4.4
  • One Hour Fire Rating Per ASTM E119-98

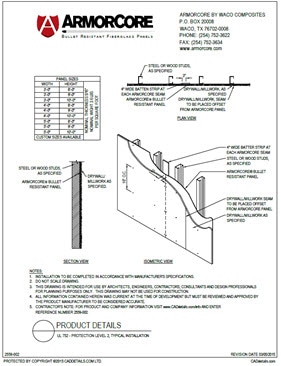

Technical Documentation
Request Project Details

Additional Information

Other Products Available

ArmorCore® Bullet Resistant Fiberglass Panels are manufactured at all 8 Levels of UL752 Standards and NIJ0108.01 specifications.

UL 752 LEVEL 2 BENEFITS

  • Non-Spalling
  • Non-Ricocheting - captures the bullet
  • Non-Conductive
  • Also offers flexibility
  • Easy to install
  • Effective delay against forced entry
  • Low wicking – preventing buildup of mold
  • Nontoxic materials – no formaldehyde

*Does not meet standard under CA Prop 65.
