UL 752 Level 3
Bullet Resistant Barriers
Most commonly used for protection against handguns of super power.
ArmorCore Level 3 panels are designed for applications requiring UL 752 Level 3 ballistic protection against common and high-powered handgun threats in commercial and institutional environments. Their lightweight fiberglass construction makes them well suited for retrofits and new construction where minimal added weight and straightforward installation are important.

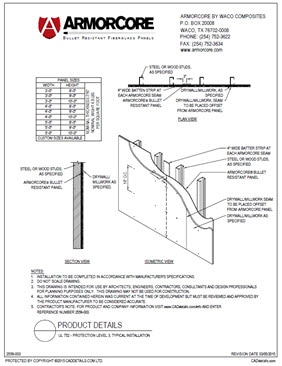

Common applications include schools, banks, offices, government buildings, healthcare facilities, transaction counters, and secure administrative areas. Panels can be installed behind finished surfaces or integrated into existing wall systems using standard construction methods.

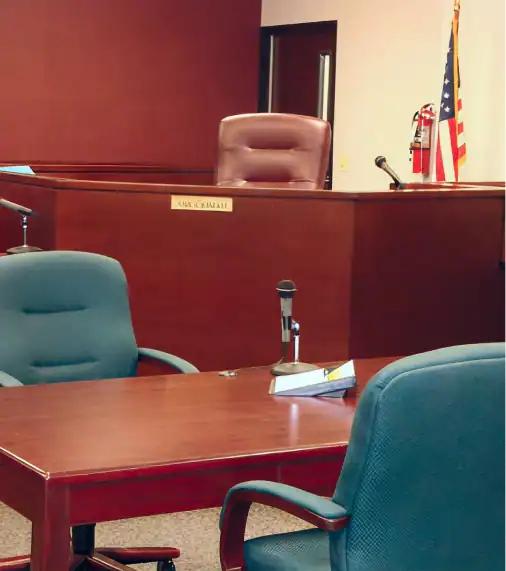

Applications of Level 3 Bullet-Resistant Panels
Level 3 withstands up to three .44 magnum rounds and is most commonly used as a protective barrier against the majority of handguns with muzzle energy of 971-1175 foot-pounds (1317-1593J). This level is typically used in high-risk areas such as banks and government buildings.
At ArmorCore, we take safety and security seriously, which is why our panels are made of fiberglass that meets the UL 752 standard for bullet-resistant equipment. The level 3 fiberglass panel is constructed with a lightweight, solid core that provides the necessary ballistic protection. It offers superior strength and durability.The panel is also easy to install with minimal disruption to existing building structures.
Its lightweight design is ideal for:
Additionally, Level 3 is approved for use in correctional facilities, military bases, and high-risk environments.
UL 752 Level 3 Specifications
The UL 752 standard for bullet resisting equipment specifies the levels of protection for the bullet-resistant fiberglass. The specifications for Level 3 require a fiberglass that has a nominal thickness of 7/16” and a nominal weight of 4.9 pounds per square foot.
The fiberglass must also withstand a minimum impact velocity of 1350 feet per second and have a grain size of 240 (g). In addition, the Level 3 specifications require that the fiberglass
withstand three shots from a .44 Magnum within a 4.6-meter shooting range.
UL 752 Level 3 at ArmorCore® by Waco Composites

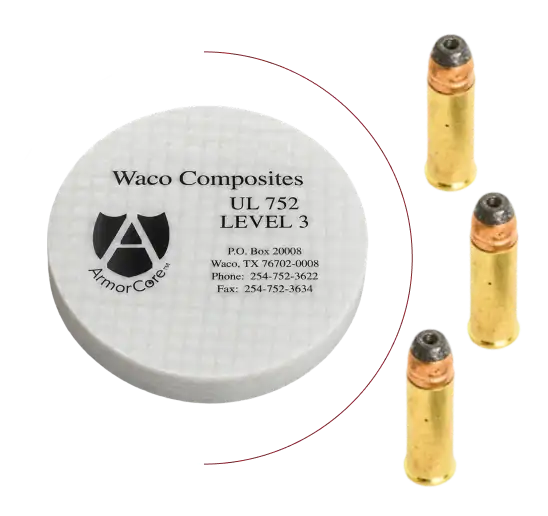

ArmorCore® by Waco Composites is a UL 752 Level 3 bullet resistant material composed of specially woven fiberglass with a proprietary resin system
ArmorCore® is available in sheets or panels of various sizes and can be used in multiple applications, such as doors, window frames, walls, partitions, and storm panels. Military and law enforcement agencies and private security companies commonly use it. Level 3 is typically used in high-risk applications, such as protecting against handgun threats and forced entry.
The materials used to create level 3 protection are extremely strong and can withstand great force. When properly installed, level 3 bullet-resistant materials are incredibly effective at protecting against a wide range of threats.
The Protection That You Need
When you need protection from large caliber handguns, ArmorCore® by Waco Composites is the answer.
This UL 752 bullet resistant fiberglass level 3 barrier is what you need.
UL 752 Level 3 Specifications
Application
Level 3 withstands up to three .44 magnum rounds and is most commonly used as a protective barrier against the majority of handguns with muzzle energy of 971-1175 foot-pounds (1317-1593J). This level is typically used in high-risk areas such as banks and government buildings.
At ArmorCore, we take safety and security seriously, which is why our panels are made of fiberglass that meets the UL 752 standard for bullet-resistant equipment. The level 3 fiberglass panel is constructed with a lightweight, solid core that provides the necessary ballistic protection. It offers superior strength and durability. The panel is also easy to install with minimal disruption to existing building structures.
Its lightweight design is ideal for offices, schools, and other public spaces. Additionally, Level 3 is approved for use in correctional facilities, military bases, and high-risk environments.
| Nominal Thickness | Nominal Weight | Minimum fps | Velocity m/s |
|---|---|---|---|
| 7/16" | 4.8 lbs per square foot | 1350 | 411 |
| Ammunition Tested |
|---|
| 240 grain (15.6g) .44 Magnum lead semi-wadcutter gas checked, minimum velocity of 1350 fps (411 mps) |
- 3’ x 8’
- 4’ x 8’
- 5’ x 8’
- 4’ x 9’
- 5’ x 9’
- 5’ x 9’
- 3’ x 10’
- 4’ x 10’
- 5’ x 10’
- UL752 Standard for Bullet Resisting Equipment – Level 3 Paragraph 4.5
- One Hour Rating Per ASTM E119-98
- ASTM F1233-98 Standard Test Method for Forced Entry Testing of Materials/Assemblies
Additional Information
Other Products Available
ArmorCore® Bullet Resistant Fiberglass Panels are manufactured at all 8 Levels of UL752 Standards and NIJ0108.01 specifications.
Technical Resources
UL 752 LEVEL 3 BENEFITS
- Non-Conductive
- Non-Spalling
- Non-Ricocheting - captures the bullet
- It offers storm protection for F5 tornados
- First level offering one-hour fire rating
- Easy to install
- Effective delay against forced entry
- Low wicking – preventing buildup of mold
- Nontoxic materials – no formaldehyde
*Does not meet standard under CA Prop 65.
